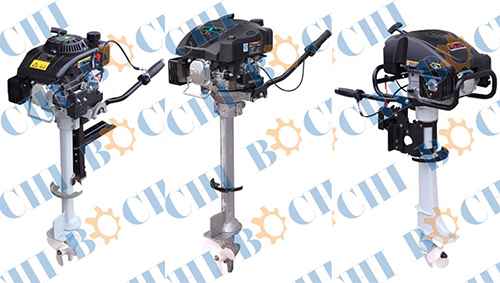

Outboard Motor 4 Stroke 4hp 5hp 6hp HS Series
Technology & Parameters:
| Model | BMMPP OHS4.0 | BMMPP OHS5.0 | BMMPP OHS6.0 |
| Engine Model | 160FLA | 164FLXW | 170FLC |
| Engine Type | Air-cooled 4-Stroke OHV Single Clinder Vertical Shaft | ||
| Bore×Stroke(mm) | 60×42 | 64×42 | 70×45 |
| Max Power Output(KW/r/min) | 2.9/4000 | 3.7/4000 | 4.5/4000 |
| Displacement(cc) | 118 | 135 | 173 |
| Power Transmission Type | Clutch | Clutch | Three Gears |
| Gear Transmission Ration | 2.15(28/13) | 2.15(28/13) | 1.5(24/16) |
| Fuel Tank(L) | 1.6 | 1.4 | 2 |
| Oil Capacity(L) | 0.6 | 0.6 | 0.65 |
| Gear Oil Capacity(L) | 0.07 | 0.07 | 0.1 |
| Recommended Fuel | 90#Normal No-lead gasoline | ||
| Recommended EN Oil | SAE15W-40 | SAE15W-40 | SAE15W-40 |
| Recommended Gear Oil | Hypoid Gear Oil SAE#90 | ||
| Ignition System | TCI | ||
| Starting System | Recoil Start | ||
| Bracket to Propeller Center Size(mm) | 600-1000 | 600-1000 | 600-1000 |
| Propeller Size(mm) | 7 1/2"×7 | 7 1/2"×7" | 7 1/4"×5 |
| Package Dimension(mm) | 515×420×1215 | 490×420×1200 | 622×442×1262 |
| Net Weight (Kg) | 26 | 26 | 28 |
| seawate antiseptic | choose | choose | choose |
The motor is designed with forward gear, reverse gear and neutral gear, clutch output and it can be rotated 360°flexibly. The height of bracket can be freely adjusted between 0.6m to 1m. Compared with traditional outboard motors, it can save 30% fuel, highly efficient and economic. No matter it is in winter or summer, it can be started once, and it is of compacted structure and light weight. The mating power of the outboard motor has passed CE, EPA and CARB certificates.
