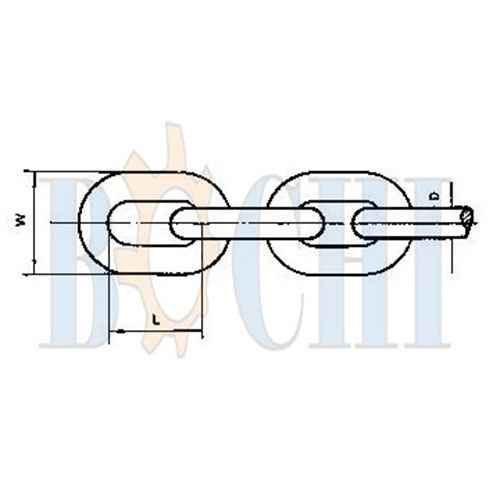

Ordinary Decorative Chain
Technology & Parameters:
| SPECIFICATIONS | SIZE | OUTSIDE LENGTH |
OUTSIDE WIDTH |
KG/M | M/50KG | BREAKING LOAD |
| 1/13 | 2.0 | 16 | 8.0 | 0.07 | 714.0 | 120KG |
| 3/23 | 2.9 | 23 | 11.5 | 0.15 | 328.0 | 170KG |
| 2/17 | 3.0 | 23 | 11.5 | 0.16 | 308.0 | 180 |
| 1/8 | 3.6 | 25 | 12.5 | 0.24 | 208.0 | 270 |
| 5/32 | 4.0 | 28 | 16.0 | 0.32 | 156.0 | 360 |
| 3/16 | 5.0 | 30 | 18.0 | 0.49 | 102.0 | 600 |
| 7/32 | 5.5 | 33 | 21.0 | 0.61 | 82.0 | 700 |
| 1/4 | 6.0 | 35 | 21.0 | 0.75 | 66.0 | 870 |
| 9/32 | 7.0 | 45 | 28.0 | 0.97 | 51.0 | 1050 |
| 5/16 | 8.0 | 47 | 30.0 | 1.31 | 38.0 | 1300 |
| 3/8 | 10.0 | 55 | 34.0 | 2.04 | 24.0 | 2200 |
| 1/2 | 12.0 | 70 | 42.0 | 2.90 | 17.0 | 3600 |
| 9/16 | 14.0 | 75 | 46.0 | 4.70 | 12.0 | 5200 |
| 5/8 | 16.0 | 91 | 56.0 | 5.25 | 9.5 | 6800 |
| 3/4 | 19.0 | 102 | 65.0 | 7.59 | 6.5 | 9000 |
| 7/9 | 20.0 | 103 | 66.0 | 8.54 | 5.8 | 9400 |
| 7/8 | 22.0 | 112 | 72.0 | 10.40 | 4.8 | 12000 |
| 1 | 25.0 | 140 | 87.0 | 12.90 | 3.8 | 15000 |
